SVIRA0001

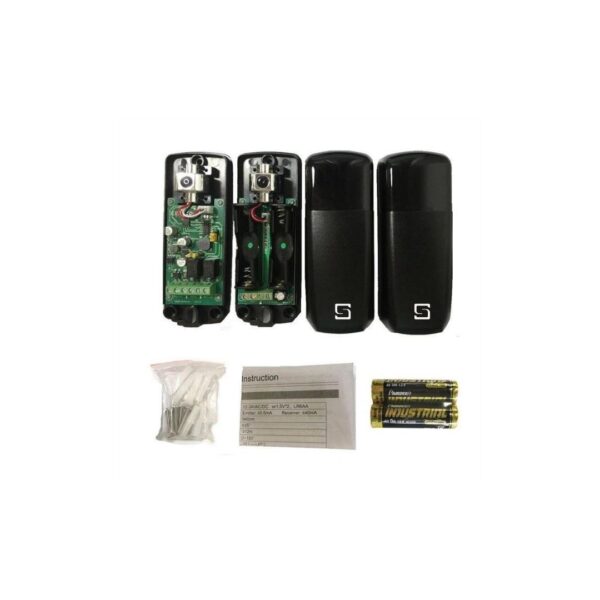

The infrared photocell sensor designed for our gate opener eliminates the need for connecting wires between the transmitter and receiver, offering a hassle-free installation experience for our customers. This convenience is made possible by the inclusion of two batteries in the package, allowing the sensor to draw power independently and ensuring a seamless and user-friendly setup process.

Category:

PRODUCT DETAILS

Model  SVIRA0001
Working Voltage  12-24VAC/DC or 1.5V, LR6AA size
Working Current (24VDC)
Emitter  ≤8mA
Receiver  ≤40mA
Photocell Wavelength  940nm
Angle of Opposite Emission  ≤±5°
Receiver Range  212m
Internal Rotation System Adjusted Angle  0~180°
Working Temperature  -20°C to +60°C
Relay Contact Loading Capacity  1A/30VDC
Size  128 x 50 x 32mm
